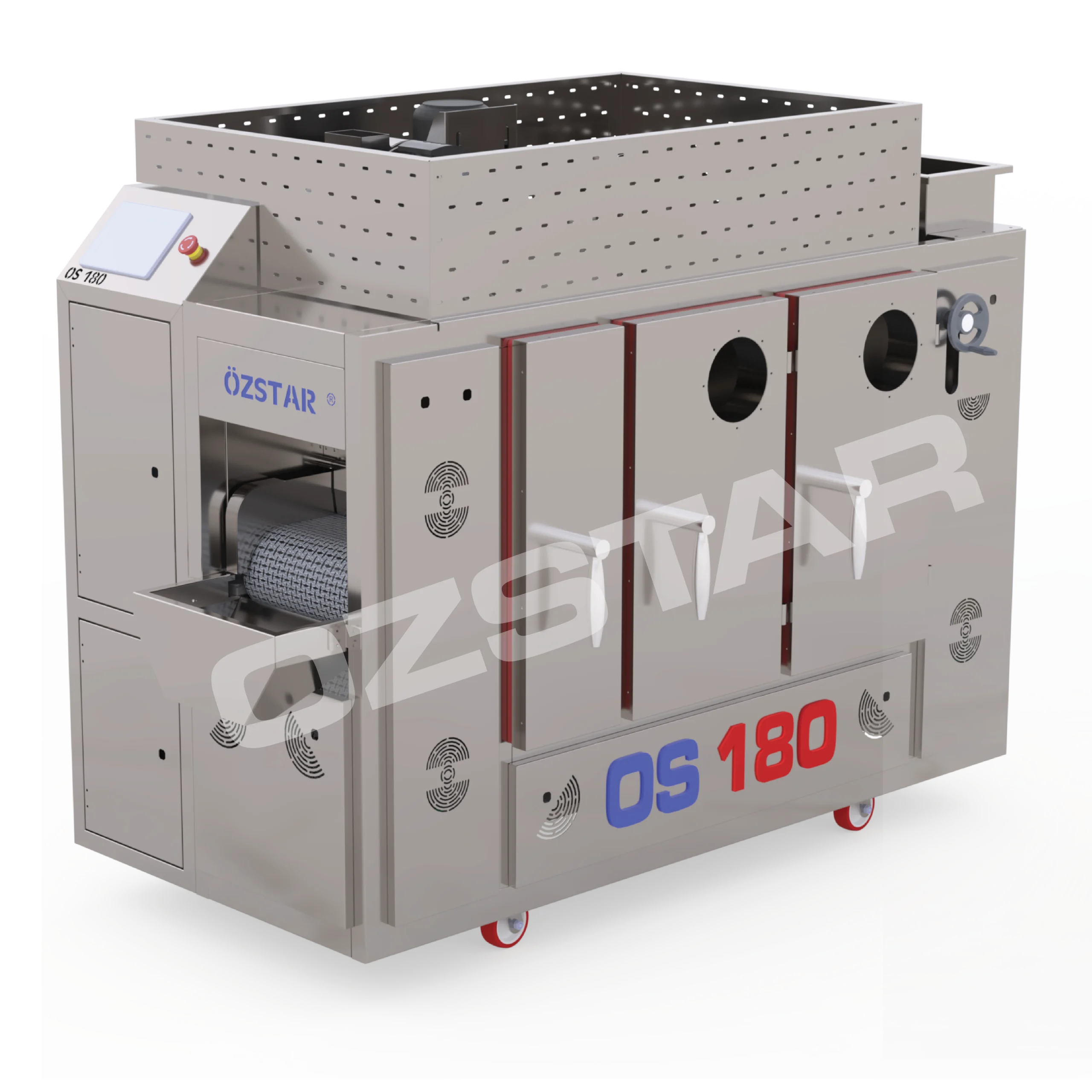

OS-180
Belt Roasting Machine

Designed for consistent roasting and reliable industrial performance, our belt roasting machines offer precise heat control, intuitive operation and a robust AISI 304 stainless steel construction. Advanced Riello burners work alongside Schneider electrical components, giving operators clear control over the roasting process. Each machine is built in-house from the ground up, with advanced TRUMPF laser cutting technology ensuring precision throughout the fabrication process. Every detail, from moving components to lubricants and accessories, is sourced from suppliers that meet applicable EU requirements. These features work together to support consistent roasting quality and reliable performance throughout daily production.

  • OS-180 Belt Roasting Machine - Özstar Machine Electric
  • OS-180 Belt Roasting Machine - Özstar Machine LPG
  • OS-180 Belt Roasting Machine - Özstar Machine Natural Gas
  • OS-180 Belt Roasting Machine - Özstar Machine Diesel

CAPACITY

Roasting Capacity KG/H

Average processing capacity (kg/h) for each compatible product — actual output may vary based on product size, moisture content, and desired roast level.

OS-180 Belt Roasting Machine - Özstar Machine
Sunflower Seeds
20 - 25
OS-180 Belt Roasting Machine - Özstar Machine
Pumpkin Seed
20 - 25
OS-180 Belt Roasting Machine - Özstar Machine
Peanut With Shell
10 -15
OS-180 Belt Roasting Machine - Özstar Machine
Peanut
20 -25
OS-180 Belt Roasting Machine - Özstar Machine
Hazelnut
30 - 40
OS-180 Belt Roasting Machine - Özstar Machine
Almond
20 - 25
OS-180 Belt Roasting Machine - Özstar Machine
Pistachio
25 - 30
OS-180 Belt Roasting Machine - Özstar Machine
Cashew
20 - 25

SIZES

Dimensions

OS-180 Belt Roasting Machine - Özstar Machine
Length
1980 mm
OS-180 Belt Roasting Machine - Özstar Machine
Width
1100 mm
OS-180 Belt Roasting Machine - Özstar Machine
Height
1500 mm

PROPERTIES

ENERGY PROPERTIES

Fuel Type:
Electric
Resistance:
29.9 kW
Fuel Type:
Diesel
Minimum: 4.5 kg/h
Maximum: 10 kg/h
Fuel Type:
LPG
Minimum: 1.3 Nm³/h
Maximum: 3.5 Nm³/h
Fuel Type:
Natural Gas
Minimum: 3.5 Nm³/h
Maximum: 9.1 Nm³/h

Video

Frequently Asked Questions

Industrial nut roasting technology uses controlled heating and product handling to roast nuts and seeds at commercial scale. The process manages variables such as temperature, time, airflow, and loading to achieve the required product characteristics.

Start with the product, required hourly output, desired roast, available heating source, and installation space. Then assess the machine’s controls, cleaning access, maintenance requirements, and compatibility with the rest of the line.

A machine may be suitable for several products, but each product can require different settings and achieve a different throughput. Suitability should be confirmed for the intended application.
