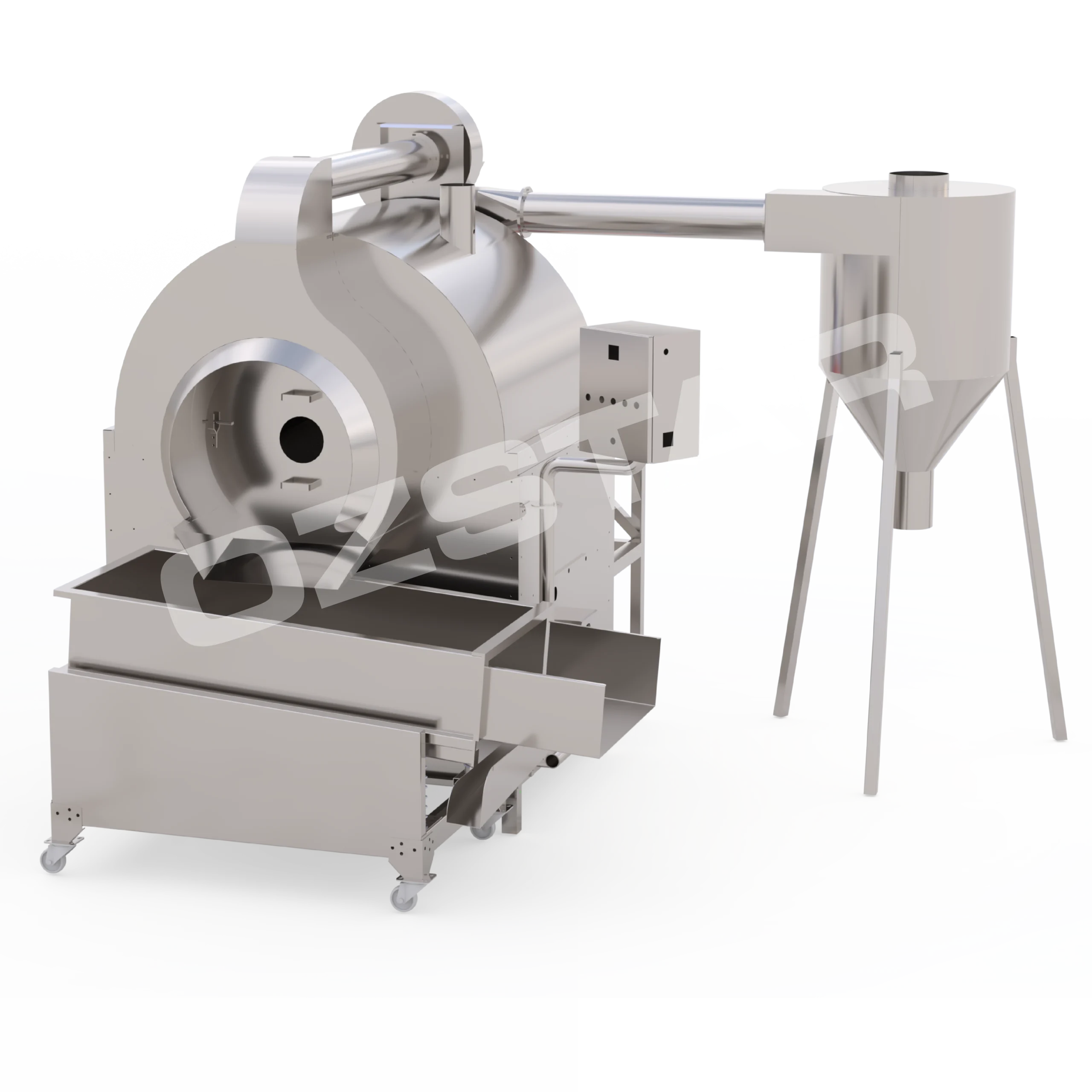

OS-120
Rotary Type Roasting Oven

This standard guided roasting machine is an upgrade to traditional guided ovens and earlier single-stage track roasters. Designed specifically for drying and roasting nuts and seeds, it is equipped with a single two-stage burner that ensures low NOx emissions, delivering exceptional roasting quality and superior taste. Engineered to maintain the full aroma and flavour profile of the product even under high-temperature conditions, it uses the hot-air roasting method. With two baskets (one perforated and one non-perforated), the machine facilitates the discharge of the finished product by inserting the basket towards the centre of the drum. Furthermore, the machine supports salt roasting, whereby the salt acts as an indirect heat medium to protect the product from centrifugal force damage; the finished product is then removed using the perforated basket.

  • Özstar Machine | OS-120 Rotary Type Roasting Oven Natural Gas
  • Özstar Machine | OS-120 Rotary Type Roasting Oven LPG
  • Özstar Machine | OS-120 Rotary Type Roasting Oven Diesel

CAPACITY

Roasting Capacity KG/H

Average processing capacity (kg/h) for each compatible product — actual output may vary based on product size, moisture content, and desired roast level.

Özstar Machine | OS-120 Rotary Type Roasting Oven
Sunflower Seeds
280 - 285 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Pumpkin Seed
280 - 285 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Pistachio
75 - 80 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Almond
270 - 280 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Peanut With Shell
200 - 225 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Topy Peanut
130 - 135 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Chickpeas
100 - 105 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Cracked Chickpeas
100 - 105 kg/h
Özstar Machine | OS-120 Rotary Type Roasting Oven
Topy Chickpeas
75 - 80 kg/h

SIZES

Dimensions

Length
2090.61 mm
Extent
2334.31 mm
Height
2268.43 mm
Electric Components
1.63 KW

PROPERTIES

ENERGY PROPERTIES

Fuel Type:
Diesel
Minimum: 4.5 kg/h
Maximum: 10 kg/h
Fuel Type:
LPG
Minimum: 3.28 kg/h
Maximum: 9.07 kg/h
Fuel Type:
Natural Gas
Minimum 4.2 m³/h
Maximum: 11.6 m³/h

Video

Frequently Asked Questions

The OS-120 lists average capacities of 280 to 285 kg/h for sunflower and pumpkin seeds, 270 to 280 kg/h for almonds, 75 to 80 kg/h for pistachios and 100 to 105 kg/h for chickpeas. Its stated size is about 2091 x 2334 x 2268 mm, with electrical components rated at 1.63 kW. Actual output varies by product and roast level.

Consider the product mix, target throughput, desired roast level and whether you plan to use salt roasting. Output changes with product size and moisture content, so it should be checked for each product. Burner fuel, floor area and the rest of the line also affect the choice.

The oven has two baskets, one perforated and one non-perforated. The basket is inserted towards the centre of the drum to facilitate discharge of the finished product, and with salt roasting the perforated basket is used to remove the product. Handling details are confirmed for the selected model.

Prepare the installation area using the dimensions stated for the model, a fuel supply matching the chosen burner and an electrical connection. Exhaust and ventilation arrangements should also be reviewed for the site. Requirements are confirmed during project evaluation.
